Transfair is a company specialized in the set up of High Capacity Ambulance AircraftⓇ. Transfair was founded in in 2005 and is headquartered in Paris, France. Our expertise gained through co­lla­bo­ra­tion with both gov­ern­ment­al a­gen­cies and pri­vate comp­an­ies, coupled with our vision to support international aid missions puts us on the forefront of airborne medicine.



Aircraft Compatibility

Military Aircraft Compatibility

Transfair Modular Medical Evacuation Systems are tested and are compatible with the following military aircraft:
Lokheed C130 Hercules, Lockheed C-5 Galaxy, Boieng C-135 Stratolifter, Boieng C-17 Globemaster III, Transall C-160 , EADS CASA C-295, Ilyshin II-76

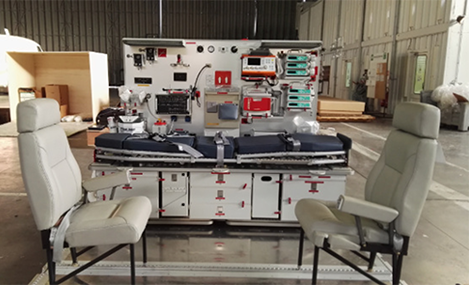

ICM Intensive Care Module

This ICM has been designed to carry one Critical Care Patient (NATO categorization of casualties: dependency 1)
Designed and manufactured of anodised aluminium compound material
Easy to install to the “Seats Pallet” seat tracks
Changeable to Non Intensive Care Module (NON-ICM) transfer for two patients

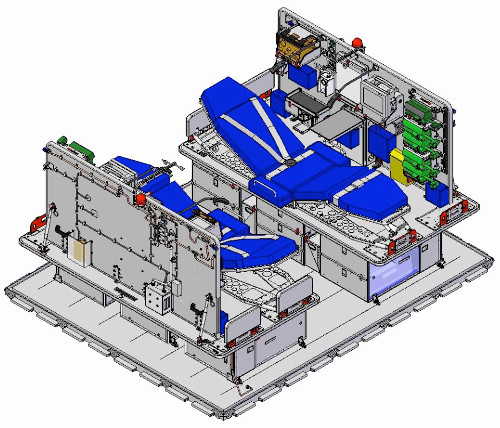

ICM Intensive Care Module diagram

ICM Medical Devices (monitoring, ventilation, infusion, succion, medical imaging) see the ICM Medical Devices tab
3 Cabinets for medical material storage
Top Panel with stretcher locker system and seat rails for to fasten the medical equipment carrier
Medical equipment Carrier with
Supports medical devices
Outlets for oxygen
Electrical sockets 28VDC / 14VDC
Medical Power Distribution Unit and converter 28VDC/14VDC
Stretcher system with antidecubitus mattress for patients comfort and safety
Adjustable back- and footrest
Patients restraint system according TSO
Oxygen is supplied via the Oxygen Station: 8xO2 aeronautical 10L cylinders (at 200 bar)
O2 Low pressure warning light

  • Integrated medical device

    The ICM Medical Devices can be adapted to the customer’s special requests

    1 Ventilator
    1 O2 inhalator
    1 Monitor / Defibrilator
    3 Electric Syringes
    3 Infusion Pumps
    1 Succion Pump Accu
    1 Warmer
    1 Cooling System
    1 Blood Gas Analyzer
    1 O2 Distribution System

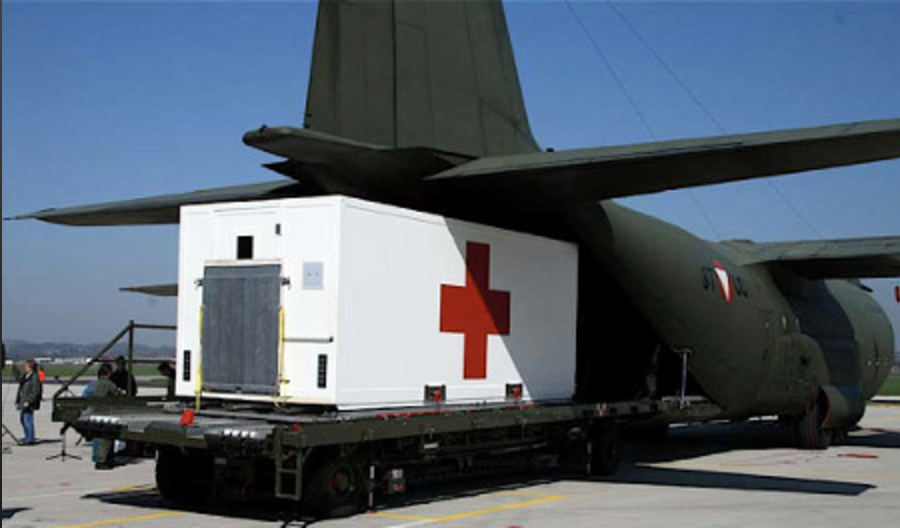

Transfair Medical Container Module being loaded onto a Austrian Air Force C130

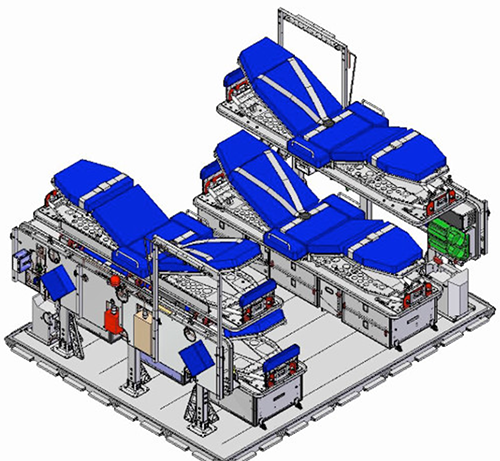

Intermediate Care Unit

Intermediate Care Unit

This INT.CM has been designed to carry two (2) Dependency 2 to 4 patient (NATO Categorization of Casuaties)
Made of an anodised aluminium compound material
Easy to be installed to the “Seats Pallet” seat tracks or in any A/C’s seat tracks

INT-CM Medical Devices (monitoring, ventilation, infusion, succion, see the INT-CM Medical Devices tab
3 Cabinets for medical material storage
Top panel with stretcher locker system and seat rails for to fasten the medical equipment carrier
Medical equipment Carrier with
Supports for medical devices
Outlets for oxygen
Electrical sockets 28VDC / 14VDC
Medical Power Distribution Unit and converter 28VDC/14VDC
Lower stretcher for one (1) patient NATO Categorization of Casualties: Dependency 2 to 3
Upper stretcher for one (1) patient NATO Categorization of Casualties: Dependency 4
Stretcher system with antidecubitus mattress for patients comfort and safety
Adjustable back- and footrest
Patients restraint system according TSO
Oxygen is supplied via the Oxygen Station: 8xO2 aeronautical 10L cylinders (at 200 bar)
O2 Low pressure warning light



Integrated medical device

The ICU Medical Devices can be adapted to the customer’s special requests

1 Ventilator Draegger oxylog 2000 Plus
1 O2 inhalator weinmann Modul Oxygen
1 Monitor Propaq CS 246
3 Electric syringes Vial
1 TCI: base Primea
2 Infusion pumps: Asena GW
1 Succion pump Accuvac Rescue
1 warmer Bair Hugger 505

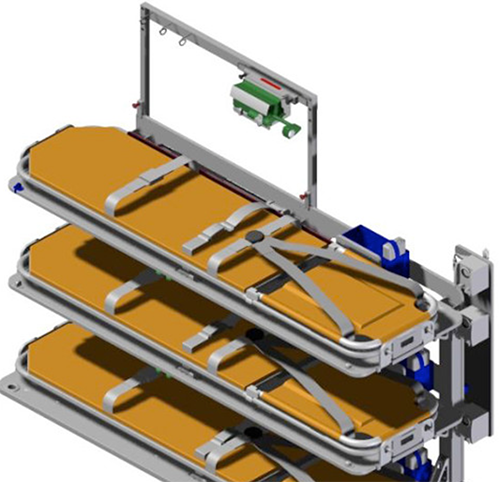

Non Intensive Care Module

Non Intensive Care Module

The self contained NON-ICU is a stacking litters system designed to carry three rescue-stretchers in safe position for evacuation missions.
Ability to carry 3 stable Patients: Nato categorization of casualties: Dependency 4
Made of an of anodised aluminium compound material
Easy to install to the “Seats pallets” seat tracks

NON-ICU includes:

3 panels with recessed locker systems FWD and AFT
Quick change attached to the pallet floor seat racks by special aircraft fitting
Guide rails for easy stretcher loading and unloading
Non ICU Dimensions L/W/H (mm): 1837/856/1034
Non ICU Weight: 176 kg
Certification: EASA

Medevac Container

Medevac Container

Iso 20ft ALUMINIUM CONTAINER contains following pre-installed components:

Electrical system 115VAC / 28VDC / 14VDC
Oxygen lines and connections to the Intensive Care Unit
LED lighting system
Ventilation system
Overhead baggage bins
Intercom system

Designed in accordance with C130 Emergency Landing Conditions, Interior in accordance with EASA CS 25 requirements
Total weight approx. 3.600 kg (Fixed Interior, ICU, Seats Galley, tranport Pallet)
